SA101A Akkuvarmennettu ulkosireeni vilkulla, oranssi, Grade 3

SA101A Ulkosireeni vilkulla akkuvarmennus Grade 3

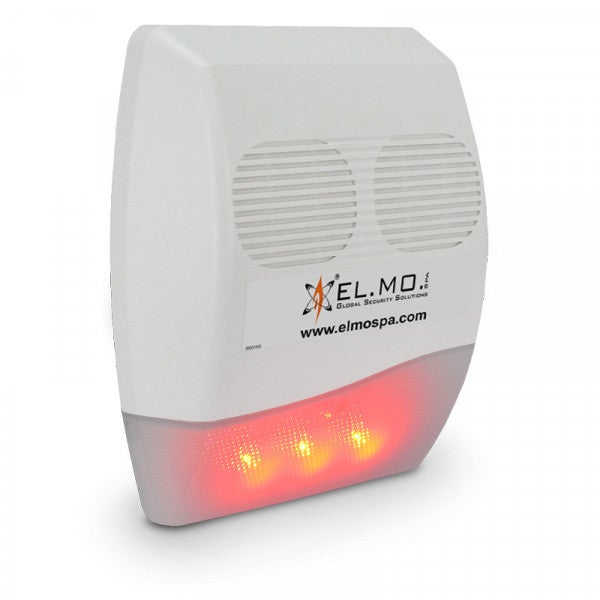

SA101A is an outdoor siren with orange LED flasher and blue status LED. It feature two 4-Ohm horns. Operation takes place in positive voltage reference fall mode: while the siren is idle, a voltage is constantly applied to the reference terminal; in alarm condition, the voltage interruption causes sound activation. SA101A is suitable for residential or industrial installations.
Additional visualisation functions can be enabled by cutting specific jumpers. The sirens are equipped with an external plastic cover and an internal metal cover. A microswitch for protection against cover opening and removal from the wall is present. SA101A is certified IMQ-Allarme according to EN 50131-4, grade 3.

• Kaksi 2-äänistä sireeniä
• Iskunkestävä Novodur Bayer valkoinen kotelo
• LED ilmaisu: oranssi LED optinen hälytysilmaisu, sininen LED järjestelmän tilatieto
• Äänen voimakkuus 112dB / 1 m
• Activation By reference voltage fall, with 0.5 delay
• Maximum alarm time 6 mins +/- 20%
• Number of blinks 120/minute
• Additional visualisation functions Yes, thrpugh jumpers
• Case External plastic cover and an internal metal cover
• Dimensions/weight W 253 x H 290 x D 85mm / 1.9kg
• IP44
• Toimintalämpötila  -25°C / +55°C
• Power cons. @12V  18 mA idle mode, 1,3 A alarm mode
• Käyttöjännite 14,4 Vdc
• Compatible battery B1.212G battery (not supplied)
• Certified IMQ-Allarme EN 50131-4: grade 3
