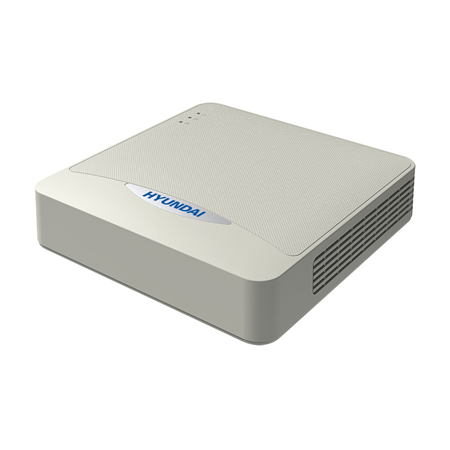

ZVR 5in1 Tallennin 4-kanavaa, 2 IP kanavaa

ZVR-1040ZVR 5in1 Tallennin 4-kanavaa, 2 IP kanavaa PRO+       Kompakti kotelo

• ZVR 5 in 1 with 4 HD analogue channels + 2 IP channels
• 5 technologies: IP cameras, HDCVI, HDTVI, AHD and Analogue CVBS
• Connectable to H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264 IP cameras
• 4 BNC inputs (supports coax):
  • HDTVI: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
  • HDCVI: 5MP, 4MP, 1080P, 720P
  • AHD: 5MP, 4MP, 4MP, 1080P, 720P
  • CVBS analogue: 960H, PAL/NTSC
• 2 IP inputs up to 8MP (4+2) with Enhanced IP mode off
• 4 IP inputs up to 4MP (4+4) with Enhanced IP mode on
• Independent HDMI (1080P) and VGA (1080P) outputs
• Audio channels: 1 RCA input / 1 RCA output
• Bi-directional audio: via RCA audio channel 1
• 4 audio inputs via coaxial cable
• Recording resolution: 8MP, 8MP Lite, 5MP, 3K, 4MP, 4MP, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF
• Stream 1 with 8MP Lite mode off:
  8MP (8 fps, channel 1 only), 5MP (12 fps), 3K (12 fps), 4MP (15 fps), 3MP (18 fps), 1080P/720P/WD1/4CIF/VGA/CIF (25/30 fps).
• Stream 1 with 8MP Lite mode activated:
  8MP Lite, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF (15 fps)
• Stream 2: WD1, 4CIF, CIF (25/30 fps)
• 96 Mbps total bandwidth
• 32 Mbps incoming bandwidth with enhanced IP mode
• 4-channel synchronised playback
• Long distance HDTVI transmission: up to 1200 metres at 720P and 800 metres at 1080P
• Internal capacity for 1 SATA HDD up to 6TB (sold separately)
• Intelligent search
• Auto-adaptive Ethernet RJ45 (10/100M) network interface
• Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
• Remote access for up to 32 users
• Onvif compatible
• P2P in the cloud, DDNS DEMES, Push and zero channel
• Connections: 2 USB 2.0
• Power supply: 12V DC, 1.5A
• Power consumption: ≤15W
• Operating temperature: -10°C ~ +55°C
• Relative humidity: 10~90%.
• Dimensions: 200 (W) x 45 (H) x 200 mm (desktop)
• Weight: ≤1.16 kg
