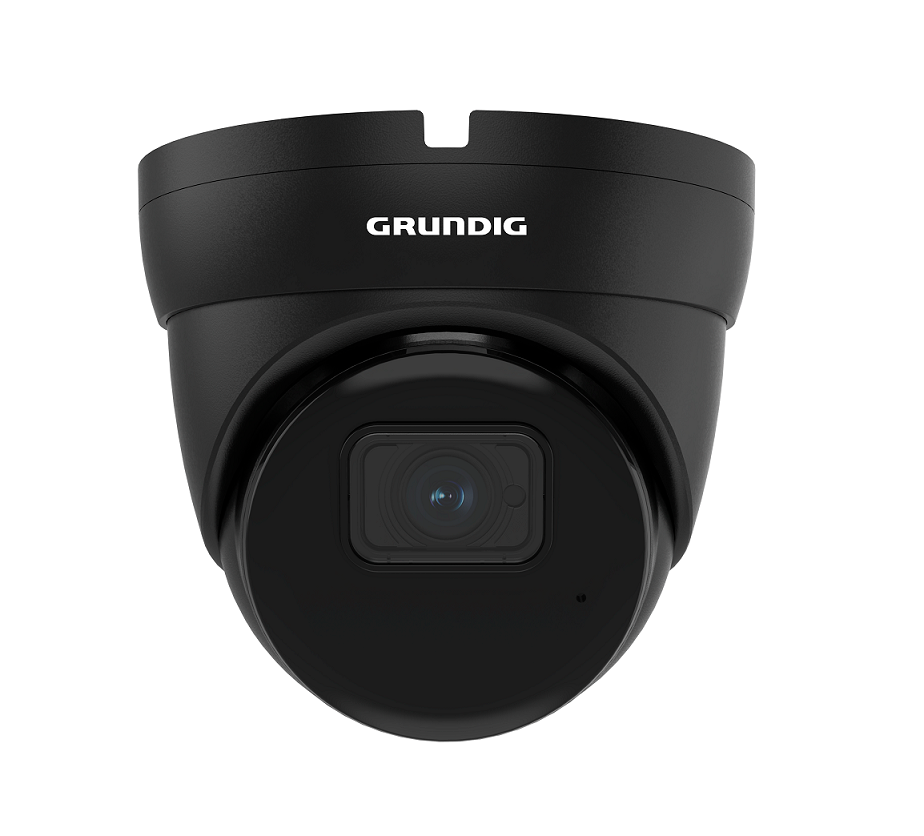

GU-CI-AC5617EB IP Turret kamera 5MP, 2.8 mm, IR 30m, SMART, NDAA, musta

GU-CI-AC5617EB IP Turret kamera 5MP, 2.8 mm, IR 30m, SMART, NDAA, musta

KAMERA
Image Sensor 1/2.7” progressive Scan CMOS
Resolution 5 MP
Video Resolution 2880 x 1620
Sensitivity Colour 0.004 Lux @ F1.6 (AGC ON)
Sensitivity B/W 0 Lux LED IR on
Shutter Speed 1/5 ~ 1/20000 s
Slow Shutter Support
White Balance Auto, Manual

LINSSI
Lens Focal Length 2.8 mm
Iris F-Number F1.6
Lens Drive Type Fixed Iris
Field of View 110° (horizontal), 58° (vertical), 133° (diagonal)
Max. IR Distance  IR 30m

VIDEO
Col/B&W Auto, IR-cut filter removable (ICR)
Wide Dynamic Range 120 dB
Image Enhancement BLC, 3D DNR, HLC
Image Settings Corridor mode, Saturation, Brightness, Contrast, Sharpness and white balance adjustable by client software or web browser
Day/Night Switch Support auto, scheduled, day, night
Privacy zones 4 zones, rectangle

Audio Detection   Detects unusual noises: dogs barking, babies crying, gunshots, sudden sound increase and decrease

FRAME RATE
Main Stream 50 Hz: 25 fps (2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720) 60 Hz: 30 fps (2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720)
Sub- Stream 50 Hz: 25 fps (1280 x 720, 640 x 480, 320 x 240) 60 Hz: 30 fps (1280 x 720, 640 x 480, 320 x 240)
3rd Stream 50 Hz: 25 fps (1920 × 1080) 60 Hz: 30 fps (1920 × 1080)

VERKKO
Functions One-key reset, anti-flicker, three streams, mirror, password protection, privacy mask, IP-address filter
Video Compression H.264, H.264+, H.265, H.265+ , MJPEG
Bit Rate 256 Kbps to 8 Mbps
SD Memory Built-in Micro SD up to 512 GB, NAS (Support NFS, SMB/CIFS)
Network Protocol TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, 802.1X, IPv4/IPv6, PPPoE
Cyber Security Different password levels, password protection, complicated password, HTTPS encryption, digest authentication for HTTP/HTTPS , IP address filter, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.0, TLS 1.1 & TLS 1.2, TLS 1.2 with updated cipher suites including AES 256 encryption, Brute Force Delay Protection, Signed Firmware.

I/O INTERFACE
Audio Input/Output Built-in microphone
Network Interface 1x 10, 100 Base T (Ethernet), TX (RJ-45)

INTELLIGENT FUNCTIONS
Motion Detection On, Off, Area Setting, Sensitivity
People & Vehicle Detection Adjustable whether people, motorized or non-motorized vehicles should be detected.
Intrusion Detection People, motorized vehicles or non-motorized vehicles, enter, exit or drive over a predefined virtual area, up to 4 rules are supported
Line Crossing Cross a pre-defined virtual line with target classification Pedestrian, Motor vehicle and non-motozed Vehicle. 4 different rules can be configured.
Object Removal Detects objects left over or lost in the pre-defined region such. In this case an alarm notification or signal will be sent automatically and in real time.
Object Counting People, motorized vehicles, non-motorized vehicles or other movements are counted when crossing a virtual line and the result is displayed on the screen in real time
Face Detection Human face appears in the image can be detected and trigger event action
License Plate Recognition Detects and recognizes car number plates. (Data- import- export function, actions can be triggered via the allowed, blocked and other list, only supported with insert SD-Card).
Heat Map Visualizes the number of people in the surveillance area over a period of time with a simple and user-friendly color scheme
Queue Length Detection Counts people in a predefined area and measures service time. The area, the maximum number of people in it and the maximum service time can be set Counts people in a predefined area. The area, the maximum number of people in it can be set
Limits of intelligent functions Only one of the AI functions can be selected at a time
Event Source Video tampering, network disconnected, IP address conflicted, motion, various AI functions, sudden audio increase-decrease
Event Action Send E-mail, trigger alarm output, notify surveillance C-WERK, upload to FTP/NAS, trigger SD-card recording and/or image capture.

Approvals
Protection Rating IP67 (IEC 60529-2013)
Regulation CE, EAC, FCC, RoHS Compliant
Standard ONVIF (Profile S, Profile G, Profile T, Profile M), SDK/API
MTBF at 25° C >60.000 hours

Environmental
Operating Temperature -35 °C ~ 60 °C (-31 °F ~ 140 °F)
Humidity Less than 95%, non condensing

Electrical
Supply Voltage12 VDC, PoE (IEEE 802.3af)
Power Consumption Max. 5.5 W

Mechanical
Mount Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°, 3-Axis Adjustment
Dimensions Ø 100 x 90 mm (Ø 3.9 × 3.53 inch)
Weight 420 g (0.93 lb)
