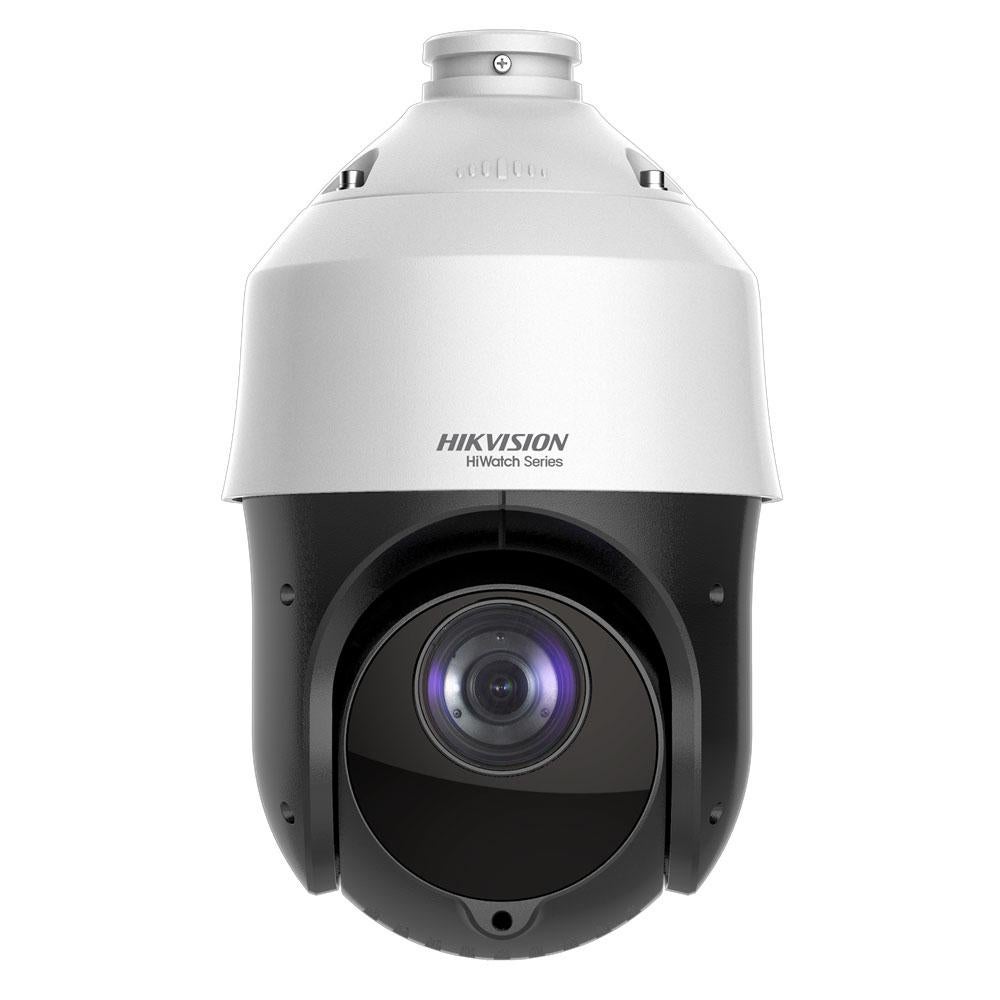

IP PTZ Speed dome 2MP, 15x opt zoom, IR 100m

HWP-N4215IH-DE IP PTZ Speed dome kamera 2MP, 15 x opt zoom, IR 100m

Kamera

• Image Sensor  1/2.8" progressive scan CMOS
• Max. Resolution  1920 × 1080
• Min. Illumination   Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed  1/1 s to 1/30,000 s
• Day & Night  IR Cut Filter
• Zoom   15x optical, 16x digital

Lens

• Focal Length  5 mm to 75 mm, 15× optical
• FOV Horizontal field of view: 53.8° to 4.0° (wide-tele),
• Vertical field of view: 31.9° to 2.3° (wide-tele),
• Diagonal field of view: 60.4° to 4.6°(wide-tele)
• Focus  Auto, semi-auto, manual
• Aperture  F1.6 to F3.0
• Zoom Speed  Approx. 2.4 s (optical lens, wide-tele)

Illuminator

• Supplement Light Type  IR
  Supplement Light Range  Up to 100 m
  Smart Supplement Light  Yes

PTZ

• Movement Range (Pan)  360° endless
• Movement Range (Tilt)  From -15° to 90° (Auto-flip)
• Pan Speed  Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
• Tilt Speed  Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
• Proportional Pan  Yes
• Presets  300
• Preset Freezing  Yes
• Patrol Scan  8 patrols, up to 32 presets for each patrol
• Pattern Scan  4 pattern scans, record time over 10 minutes for each scan
• Park Action  Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
• Power-Off MemoryYes

Video

• Main Stream
• 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
• 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  Sub-Stream
• 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),
• 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Third  Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),
• 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  Video Compression  Main Stream: H.265+/H.265/H.264+/H.264,
• Sub-Stream: H.265/H.264/MJPEG,
• Third Stream: H.265/H.264/MJPEG
• Video Bit Rate  32 Kbps to 16384 Kbps
• H.264 Type  Baseline Profile/Main Profile/High Profile
• H.265 Type  Main Profile
• Scalable Video Coding (SVC)  H.264 and H.265 encoding
• Region Of Interest (ROI)  Main stream, sub-stream and third stream respectively support four fixed areas

Network

• Protocols  IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
• Simultaneous Live View  Up to 20 channels
• API  Open Network Video Interface, ISAPI, SDK, ISUP
• User/Host  Up to 32 users. 3 levels: Administrator, Operator and User
• Security  User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Network Storage  NAS (NPS, SMB/ CIPS), ANR
• Client  iVMS-4200, Hik-Connect
• Web Browser  IE10-11, Chrome 57+, Firefox 52+, Safari 12+


• Image Settings  Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR)  120 dB
• Defog  Digital defog
• Image Enhancement  BLC, HLC, 3D DNR
• Privacy Mask  24 programmable privacy masks
• Regional Focus  Yes
• Regional Exposure  Yes

Interface

• Ethernet Interface  1 RJ45 10 M/100 M Ethernet Interface; PoE+ (802.3at, class4)
• On-Board Storage  Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Event

• Basic Event  Motion Detection, Video Tampering Detection, Exception Detection
• Smart Event  Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection

General

• Power  12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4  Max. 18 W (IR light 6 W Max.)
• Dimension  Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42")
• Weight  Approx. 2.5 kg (5.51 lb)
• Material  ADC 12, PC+10% GF
• Operating Condition  -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Approval

• EMC   FCC (47 CFR Part 15, Subpart B);
• CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
• RCM (AS/NZS CISPR 32: 2015);
• IC (ICES-003: Issue 7);
• KC (KN 32: 2015, KN 35: 2015)

Safety

• UL (UL 62368-1)
• CB (IEC 62368-1:2014+A11);
• CE-LVD (EN 62368-1:2014+A11:2017),
• BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
• LOA (IEC/EN 60950-1)

Environment

• CE-RoHS (2011/65/EU);
• WEEE (2012/19/EU);
• Reach (Regulation (EC) No 1907/2006)

Protection

• IP66 (IEC 60529-2013), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
